80W FM transmitter

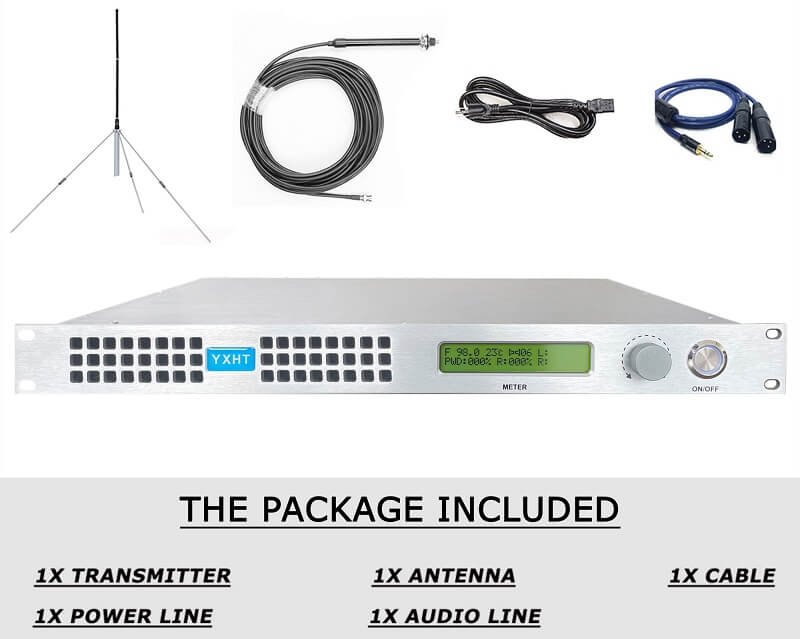

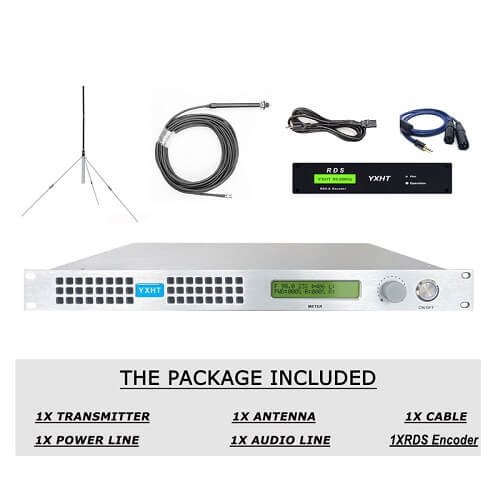

1.YXHT 80W FM transmitter complete equipments of radio station package + Antenna + cable
2.Shipping Method: DHL, FedEx, UPS, EMS, By Sea, By Air
3.Payment: TT(Bank Transfer), Western Union, Paypal, Payoneer
Order
Product detailsTechnical manual
80W FM transmitter
Equipments included
1. Frequency Range87.5MHz~108 MHz
2. Frequency Setting step10KHz
3. Carrier Frequency precision±200Hz
4. Residual Wave Radiation≥65dBc
5. Audio Input Impedance600Ω,Balance
6. Separation60dB Pilot Signal Modulation
7. Audio Input Level±10dBm,step 0.01dB
8. S/N≥75dB(30H~15kHz,100%)
9. Audio Harmonic Distortion<0.05%
10. Audio response±0.05dB(30Hz~15KHz)
11. Output Load Impedance50Ω
12. Output Power80W
13. Pre-emphasis0μS,50μS,75μS
14. Deviation±75kHz
15. Pilot Frequency19 kHz±1Hz
16. Sub-carrier Suppression≥65dB

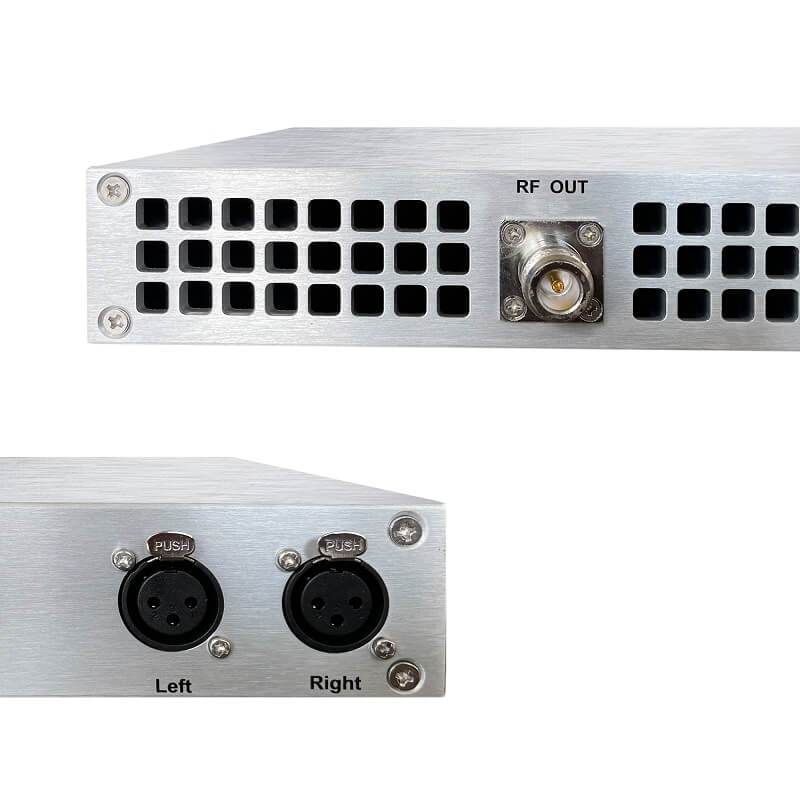

17.RF Output Connector7/16'(female)or7/8'Flange

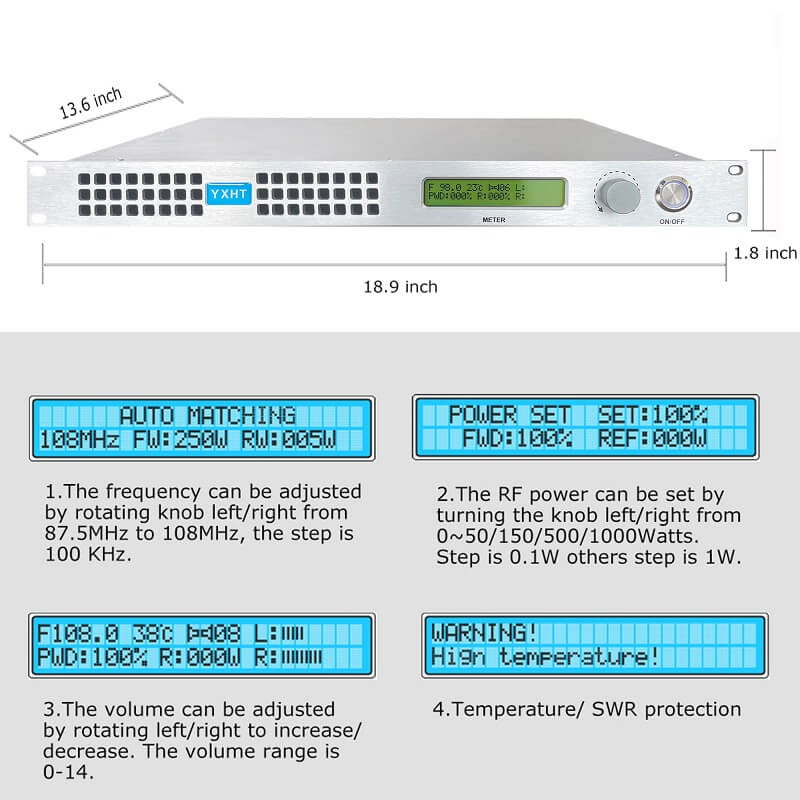

18.Size460mm*480mm*44mm
19.Weight7KG
20.Pilot Signal Modulation8%~10%

Product Description

80W FM Broadcast Transmitter

· The transmitter implements digital FM modulator module as its core,combining with RF power amplifier.In the transmitter,DSP&DDS are used to execute all-digital processing,such as digital filtering,pre-emphasis,the generation of pilot frequency,stereo coding and FM modulating.A AGC circuit is used to keep the set power stable.
· High performance and very good reliability has been proved by the large usage of YXHT-80C transmitters.Also it is low cost and small size.


Features:

· Hearing similar to CD
· All-digital technologies DSP+DDS
· Built-in audio signal limiter
· Analog and Digital (AES/EBU) audio signal input directly.
· AGC circuit can keep the Output Power stability.
· Big LCD display all the parameters in real time.
· Communication Interface by RS232 for remote
· Five kinds of protections for the security
· Compact structure



Warranty: 6 years for all transmitters in our factory.

OUTSTANDING FEATURES:



1) OVERHEAT PROTECTION: The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range.
2) OVER SWR PROTECTION: SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile.
3) FAN ERROR ALARM When the fan stops running, the alarm message will be displayed on the screen.
4) ADJUSTABLE POWER OUTPUT The RF out of this 80w FM transmitter is continuously adjustable from 0-80 watt at the stepping of 0.1watt, which means you can tune it to 1w, 1.1w, 1.2w...80w, with just one transmitter you’ll get multiple modes of outputs and easy to tune as per your needs
FREQUENTLY APPLICABLE USES:
1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations

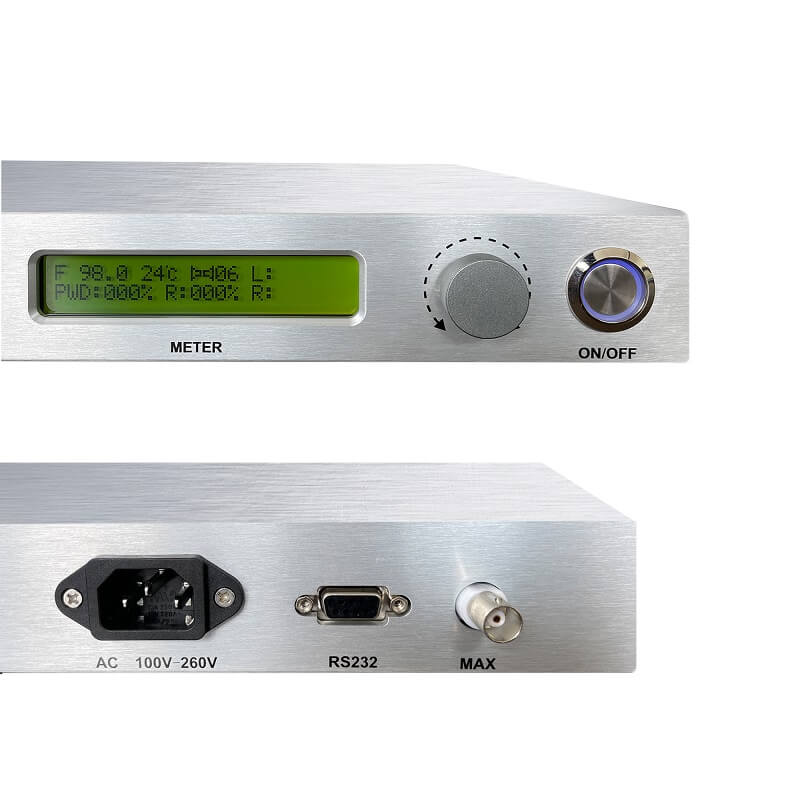

Product display
